Boiler grate

The step grate combustion chamber for boilers is a system that allows the combustion of a wide variety of solid waste, from biomass to RDF. In addition, it is able to support fuels with a high degree of humidity, high ash content and large size.

What is the role of grate in steam boiler?

Grates are provided in solid fuel boilers to help with the fuel-burning such as biomass or coal. It is designed to enable the passing of air for combustion.

What is grate system?

The grate firing system consists of a horizontal moving grate for wood chips and other solid biomass. The maximum thermal power output is 240 kW. The fuel feeding from the fuel storage is managed by two stokers. The primary air is splitted in two different zones to improve the combustion.

What is grate in power plant?

Grate firing is a type of industrial combustion system used for solid fuels. It now is used mainly for burning waste and biomass, but also for smaller coal furnaces. Capacities 0.3 to 175 MWth in industry and CHP.

What is the heating surface of a boiler?

For the purpose of regulating the area of the safety valves and the amount of registration and inspection fees the “heating surface” of a boiler shall be the total surface of all plates and tubes exposed to heat on one side and in contact with water on the other measured on the water side or the fire side, whichever is

What is a boiler chamber?

The combustion chamber is the component of the boiler where the fuel is burned to heat the water. The chamber contains the burners and is designed to provide a very safe area for high-temperature combustion of volatile fuel.

What is damper in boiler?

Flue gas dampers are installed in the connection pipe between a boiler and the chimney and close the flue gas path, if the chimney is no longer in use. The flow safeguard prevents the cooling down of the heat generator and the installation room, which helps to save energy.

What is economizer in boiler?

Economizers are heat exchangers that transfer the heat in the flue gas to another medium‚ generally the boiler feed-water‚ although other streams are sometimes used such as make-up water. There are 2 types of economizers: non-condensing and condensing.

What is grate bar?

These grate bar are used in the furnace upon which the fuel is burned. These bars are manufacture with various alloy compositions, depends on the fuel used in the boiler. The intermittent gap in the grate bar / fire bars allows the air flow for combustion.

What is Travelling grate?

Traveling grates are designed for the use of granulated fuels, treated or not, of medium size. The biomass used for combustion can have a high ash content and a medium-low percentage of humidity.

How boiler are rated?

The 'from and at' rating is widely used as a datum by shell boiler manufacturers to give a boiler a rating which shows the amount of steam in kg/h which the boiler can create 'from and at 100°C',at atmospheric pressure. Each kilogram of steam would then have received 2 257 kJ of heat from the boiler.

What is the difference between furnace and combustion chamber?

The combustion chamber is the part of the furnace where natural gas is burnt to create the heat that enters into the heat exchanger. For combustion to occur, the furnace needs to draw in air to mingle with the gas from the burners.

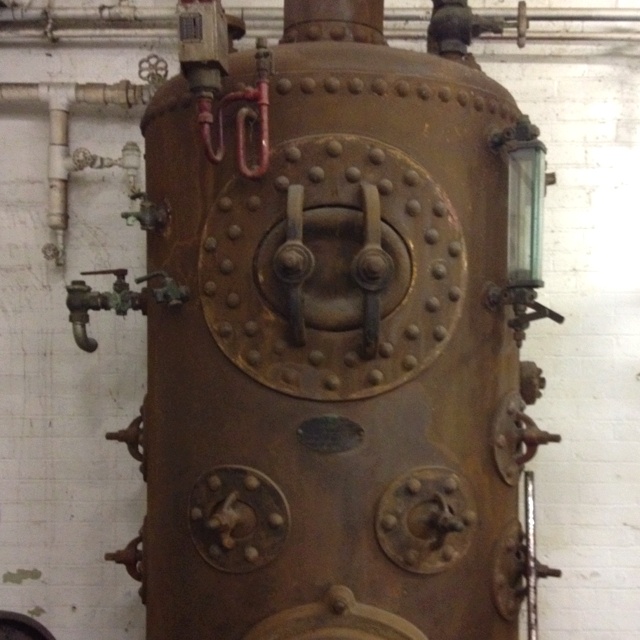

What is Cochran boiler?

A Cochran Boiler is one of the multi-tubular vertical fire tube boilers that has several horizontal fire tubes. Cochrans are the modification of a simple vertical boiler where the heating surface has been increased employing some fire tubes.

What is a heating surface?

heating surface (plural heating surfaces) In a steam boiler, the aggregate surface exposed to fire or to the heated products of combustion, especially of all the plates or sheets that are exposed to water on their opposite surfaces.

What is heat surface area?

An object with a wider area has more surface particles working to conduct heat. As such, the rate of heat transfer is directly proportional to the surface area through which the heat is being conducted.

Why do you need a boiler blowdown?

Boiler blowdown is the removal of water from a boiler. Its purpose is to control boiler water parameters within prescribed limits to minimize scale, corrosion, carryover, and other specific problems. Blowdown is also used to remove suspended solids present in the system.

What are the parts of a boiler called?

The Main Components of a Boiler

Burner. One of the most important parts of a boiler is the burner.
Combustion Chamber. As the name suggests, a combustion chamber is the part of a boiler in which the fuel/air mix burns. ...
Heat exchanger. ...
Aquastats. ...
Backflow Valve. ...
Circulator pumps. ...
Controls. ...
Deaerators/Condensers.

What are the 2 parts of the boiler?

Key Components of Boilers are:-

Burner – The burner is the component of boiler that provides the heat that heats the water of system.
Heat exchanger – The heat exchanger of boiler allows the heat from the burner to heat the water in system.

What is the most important part of a boiler?

The heat exchanger is one of the most important parts of the entire boiler system.

Does a boiler need a damper?

Regardless of what type of boiler you have, you could benefit from having a flue damper installed. If your boiler functions by burning fuel, then you need to be sure the fumes from the burned fuel can escape from the home. Most of the time, these fumes are directed up and out through the chimney.
